LAW Hand Pump

  • Manually operated volumetric type pump
  • 2 types available, dispensing either 6cm3/stroke or 8cm3/stroke
  • Minimize wasted oil by dispensing fixed and measured quantities



The LAW hand pump is designed for use in a volumetric type system.   As oil can be dispensed by pulling upon the lever, installation and operation is simple.
2 sizes of LAW volumetric type hand pumps are available, which can dispense either 6cm3/stroke or 8cm3/stroke of oil.

Form code

LAW_modelName_en

Specifications

MODEL
CODE
Discharge Vol.
(c㎥/st)
Max. Discharge
Pressure  (MPa)
Discharge
Port Size
Tank
Capacity(L)
Effective Tank Capacity  (L)
LAW6 6 M10×1.0 0.35 0.25
LAW8DR(L) 8 4.0 Rc1/8 0.6 0.4





Drawing

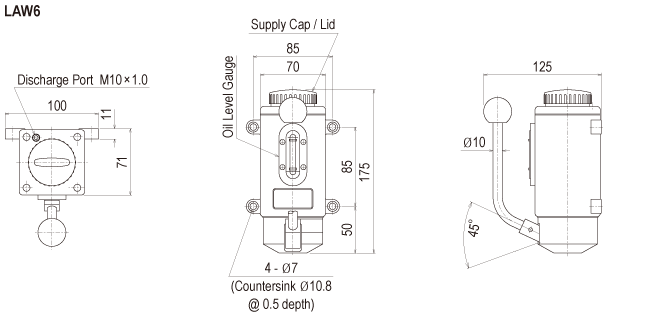

LAW_drawing_01_en

LAW_drawing_02_en

LAW_drawing_03_en
