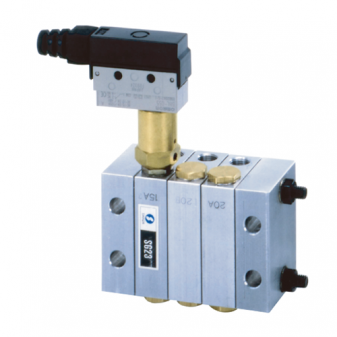

Dester G SG2

Form code

SG2

Specifications

Max. Operating Pressure 14MPa {140kgf/c㎡}
Applicable Grease NLGI No.00~1
Discharge Volume 0.1, 0.15, 0.2, 0.3, 0.4, 0.6c㎥/st
Min. Number of Outlets 3 (Point 1)
Max. Number of Outlets 12 (Point 2)
Min. Valve Blocks 3
Max. Valve Blocks 6

(Point 1) When  all  outlets  discharge  0.1  or  0.15,  the “Minimum Number of Outlets” is 6 ports.

(Point 2) When  all  outlets  discharge  0.4  or  0.6,  the “Maximum Number of Outlets” is 6 ports.

※Take note that the unit cannot operate if a single port is blocked or sealed as the unit utilizes a progressive system.

Drawing

SG2_drawing_01_en
